Flat-surfaced interface driver terminal with dual ports for embedded defense applications
Driver Vehicle Control and Data Interface

Interface Driver Terminal

  • Mission computer for armoured vehicles, interfacing with the LPP VIBMS system.
  • Collects CAN bus data, including vehicle status and operational parameters, for real-time processing.
  • Transmits the data to the driver’s tablet via Ethernet.
  • Supports video streaming from cameras to enhance driver situational awareness.
  • Part of the VIBMS system deployed in PANDUR II and T-72 Czech Army vehicles.

Basic description

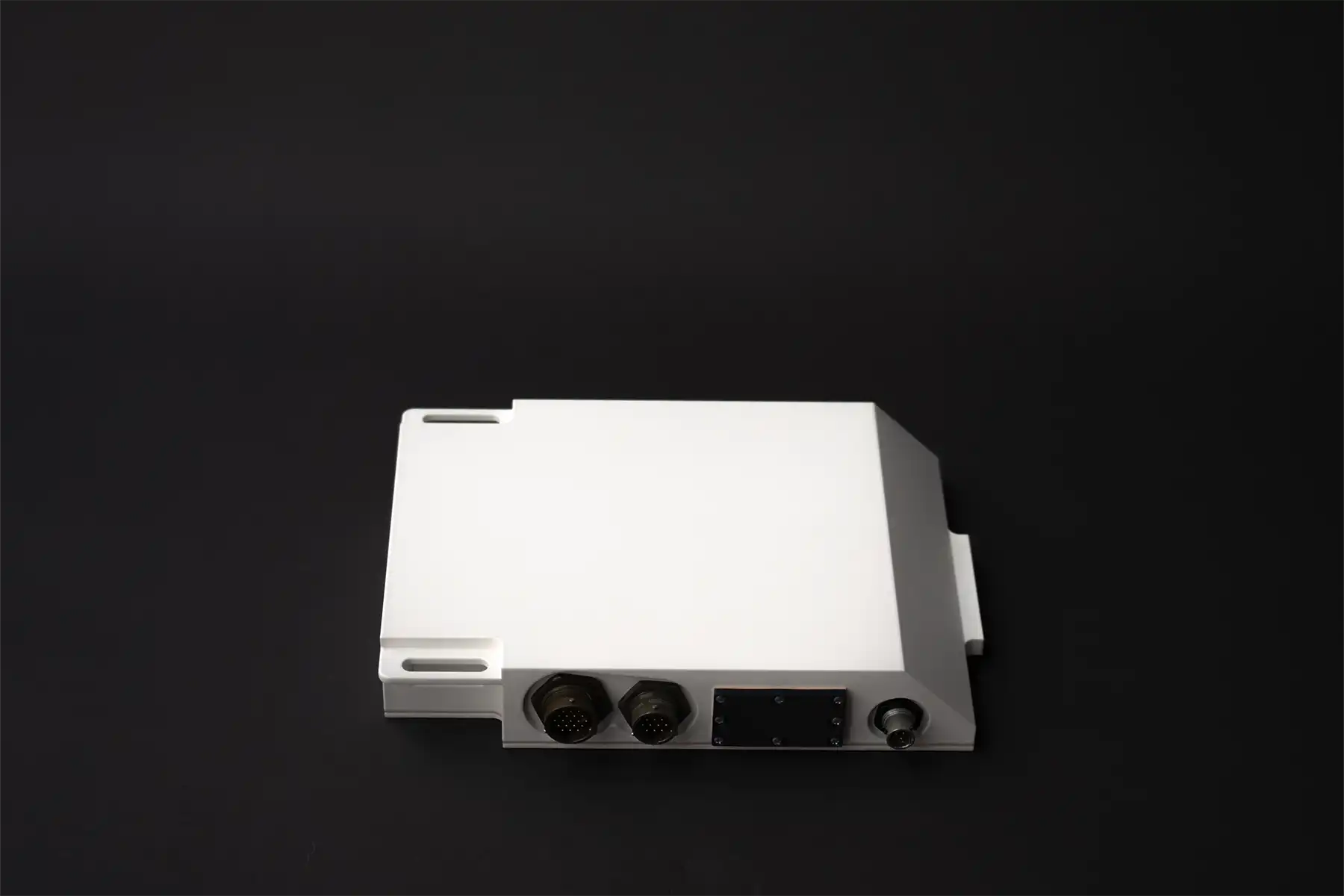

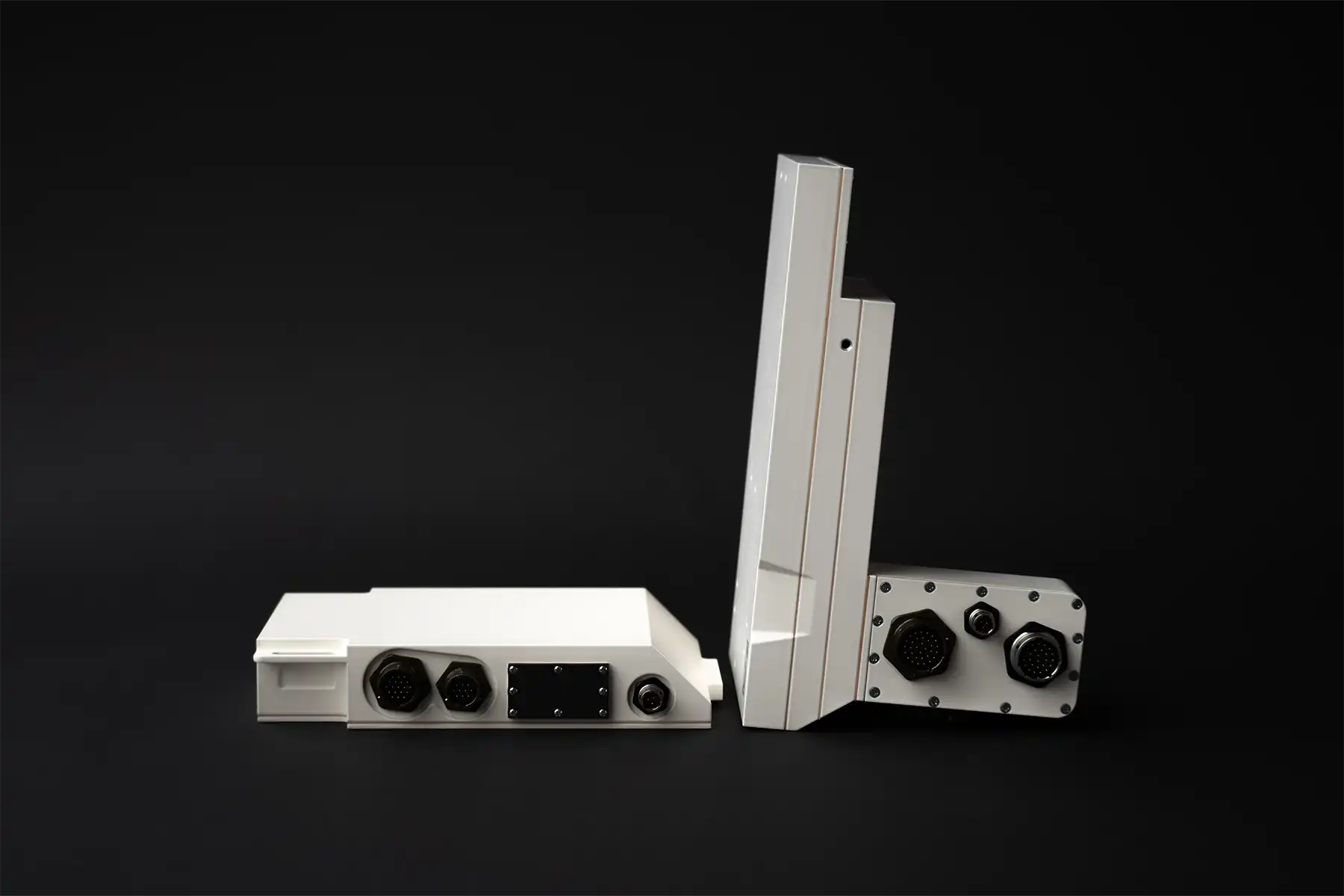

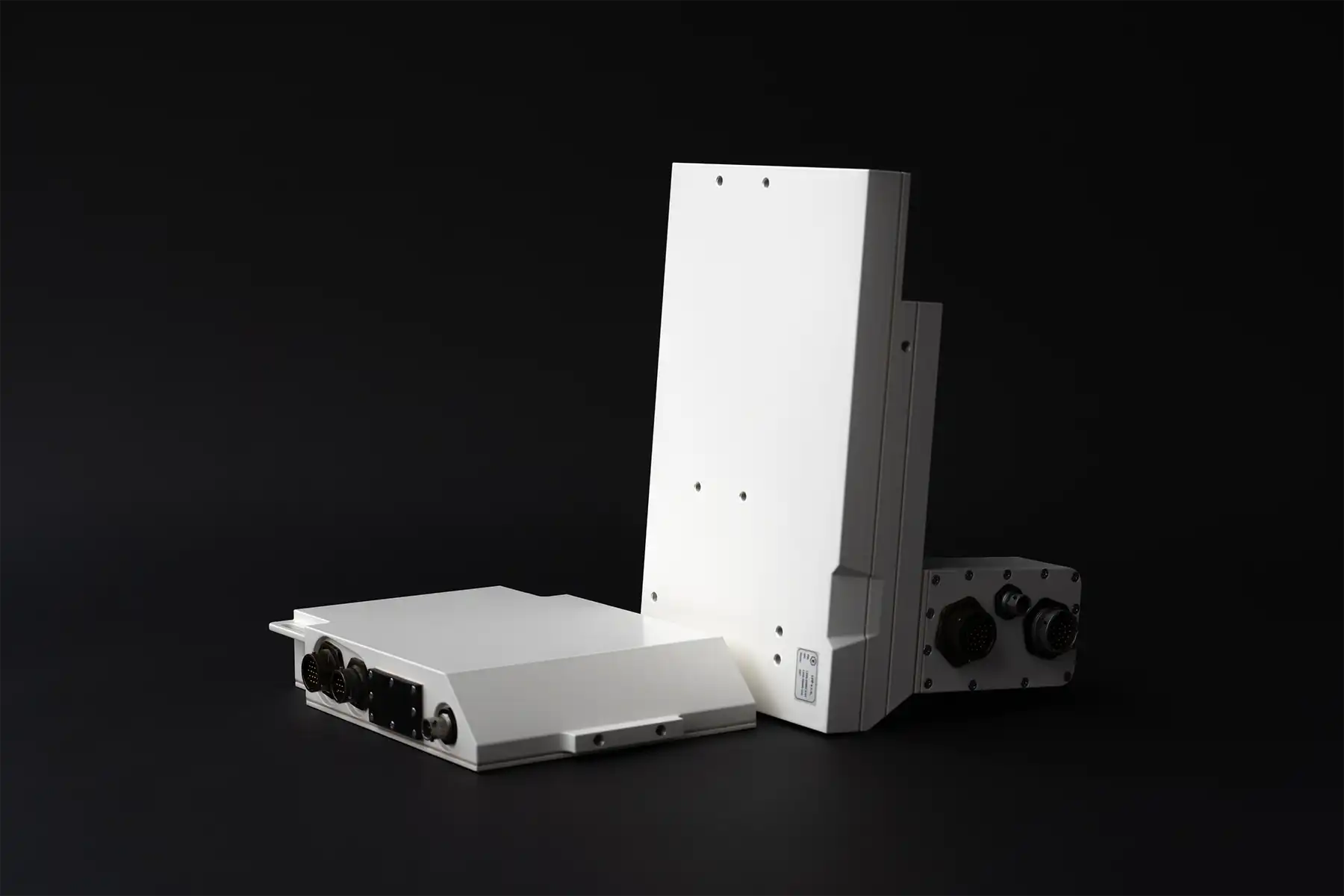

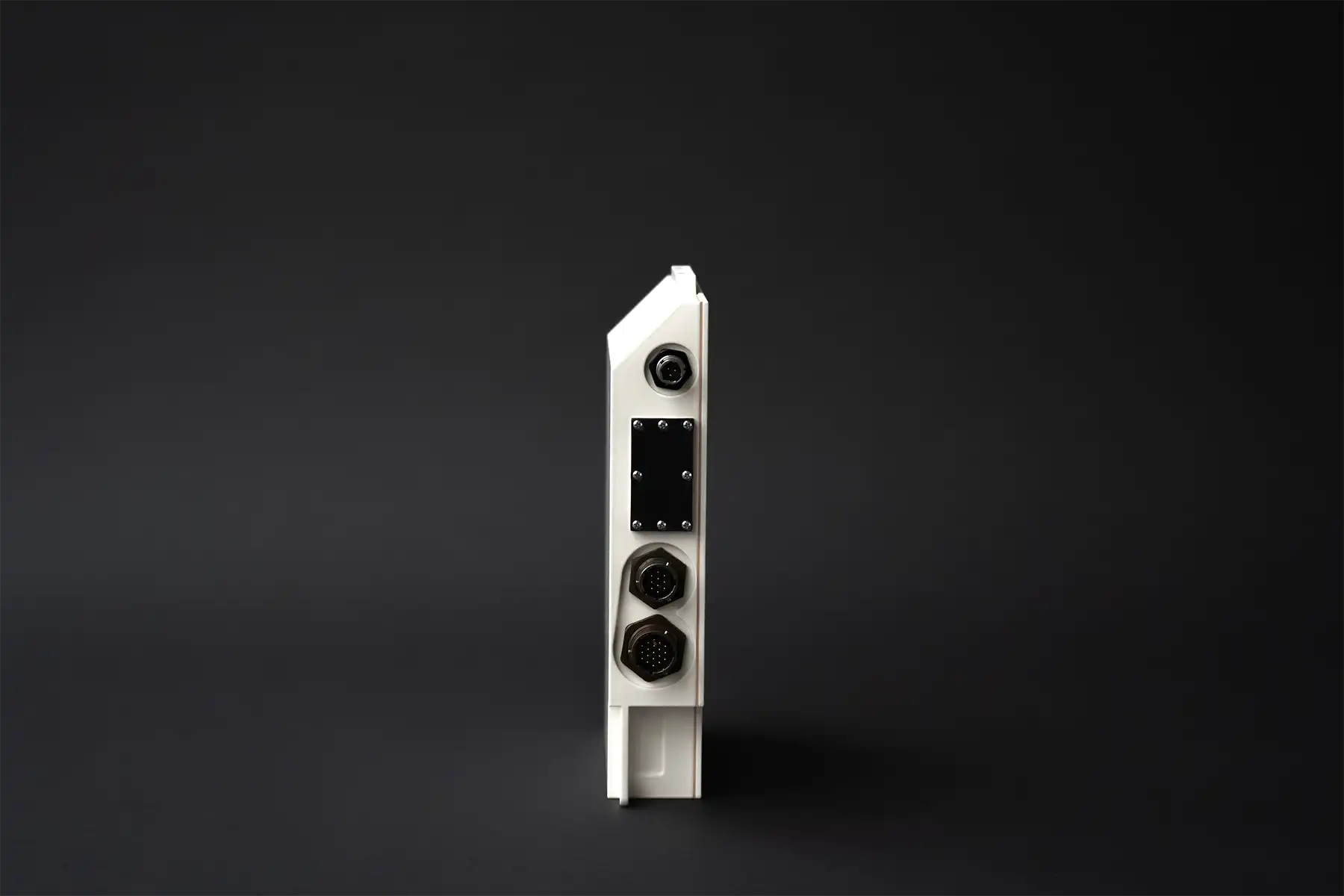

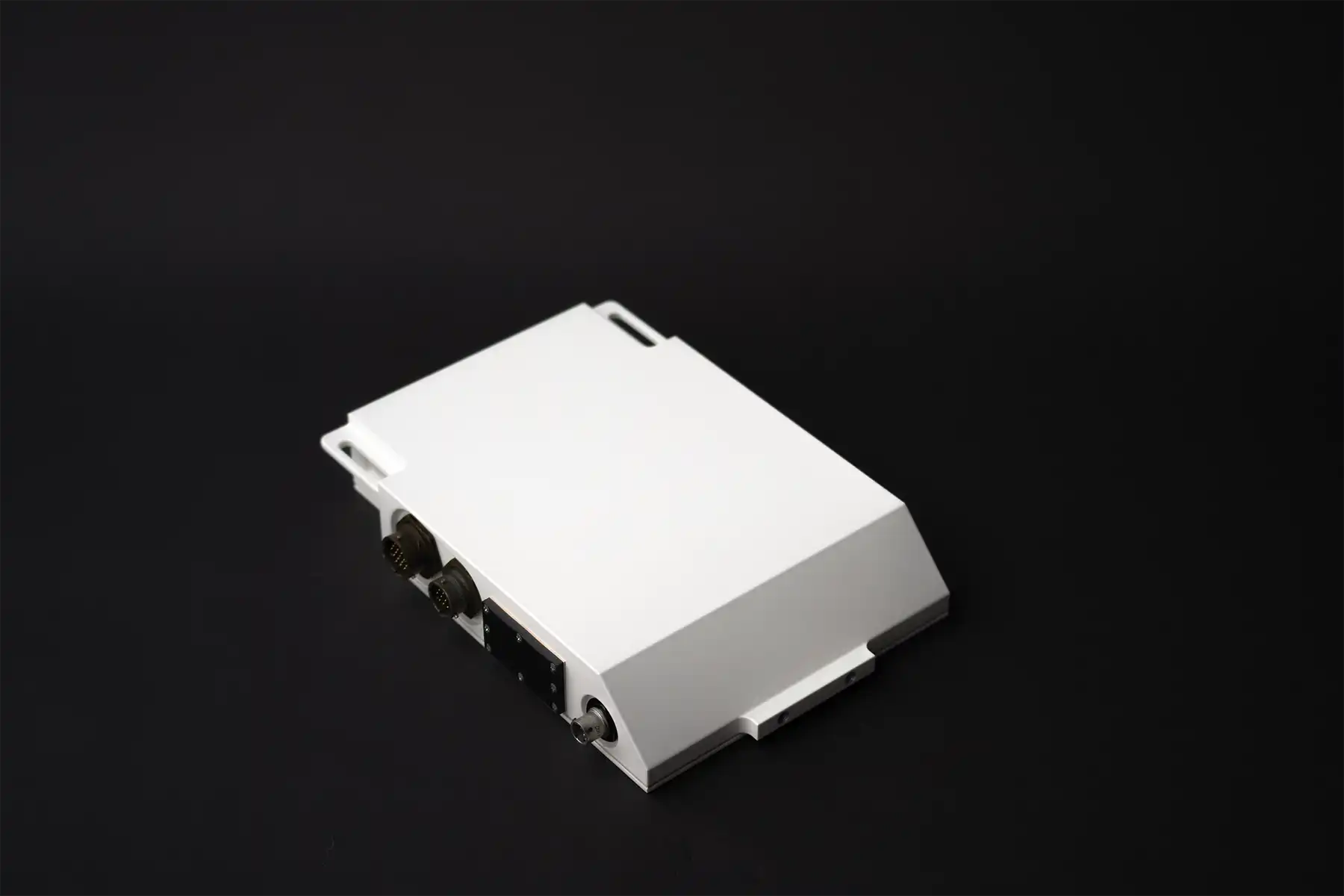

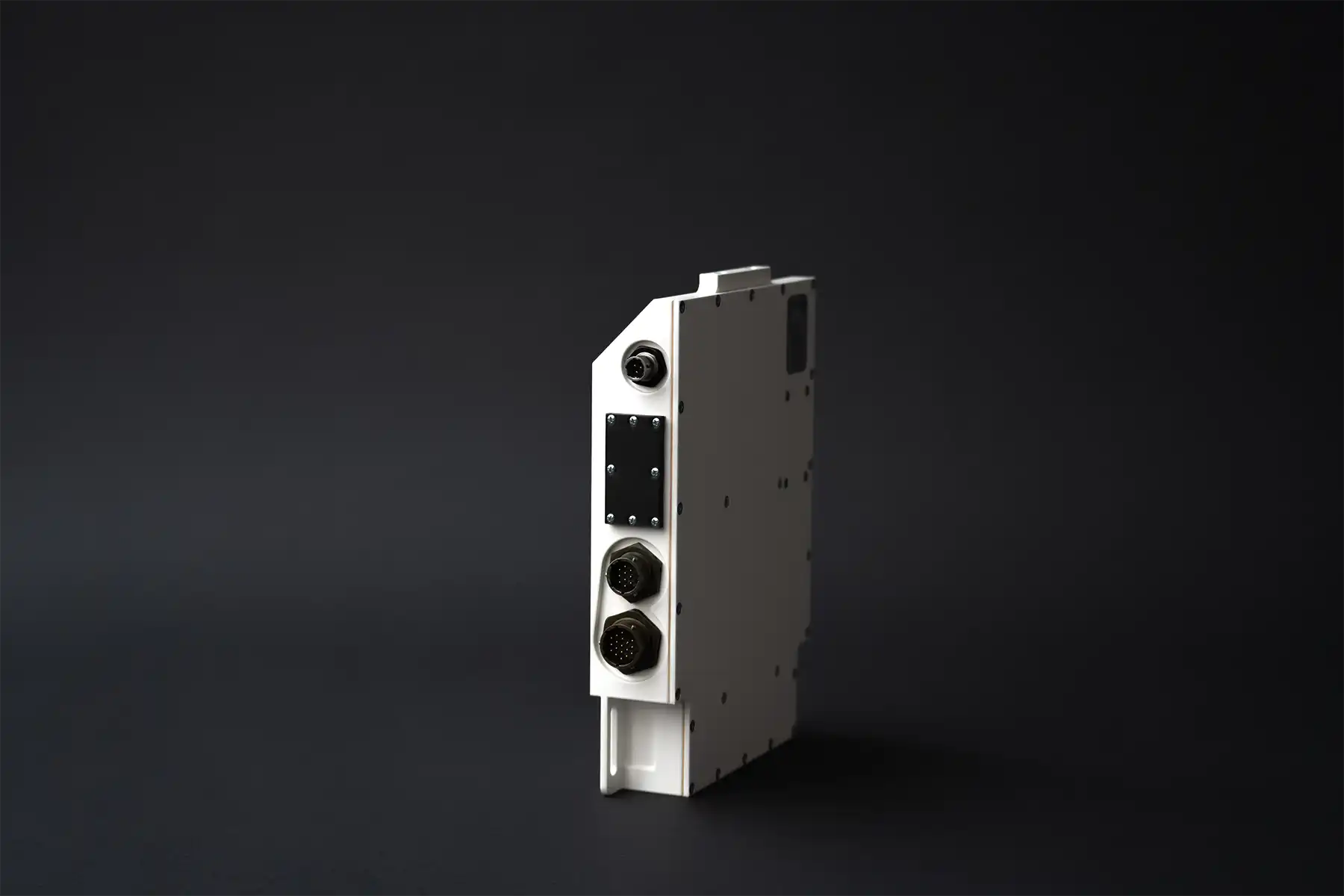

Interface Driver Terminal (IDT) functions as a vehicle mission computer. It processes data from sensors and transmits it to display units such as the LPP Display Driver Unit (DDU). Acting as a control board, the IDT interfaces between the LPP Vehicle Information Battle Management System (VIBMS) and the driver. It collects data from the CAN bus, processes it, and sends the information to the driver’s tablet via Ethernet. Additionally, the IDT supports video streaming from reversing cameras, enhancing situational awareness.

LPP has integrated the Interface Driver Terminal into armoured Czech Army vehicles, including the PANDUR II and T-72, through the VIBMS platform. This robust integration ensures reliable data processing, vehicle control, and real-time communication.

The Interface Driver Terminal is a part of the VIBMS system and integrates with the Commander Driver Terminal, Diagnostic Unit, and Inertial Navigation Unit.

Technical description

Operating Temperature -30 °C to +50 °C
Temperature Limit -40 °C to +70 °C
Relative Humidity 98 % at 25 °C
Power Supply 24 V 2 A, 18 V min., 33 V max.
Interfaces 1x CAN 125 kBd, 4x Ethernet, 1x PAL
