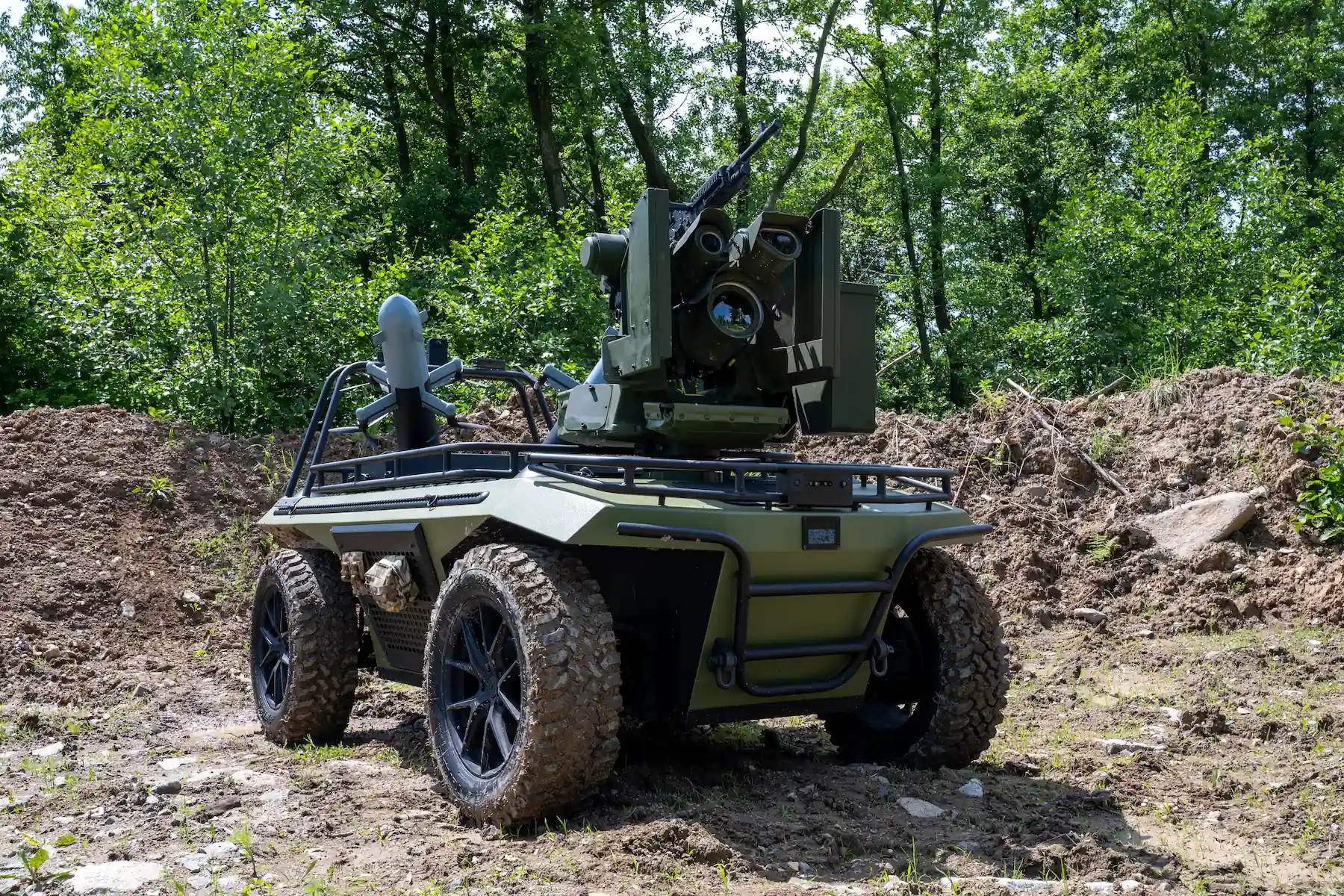

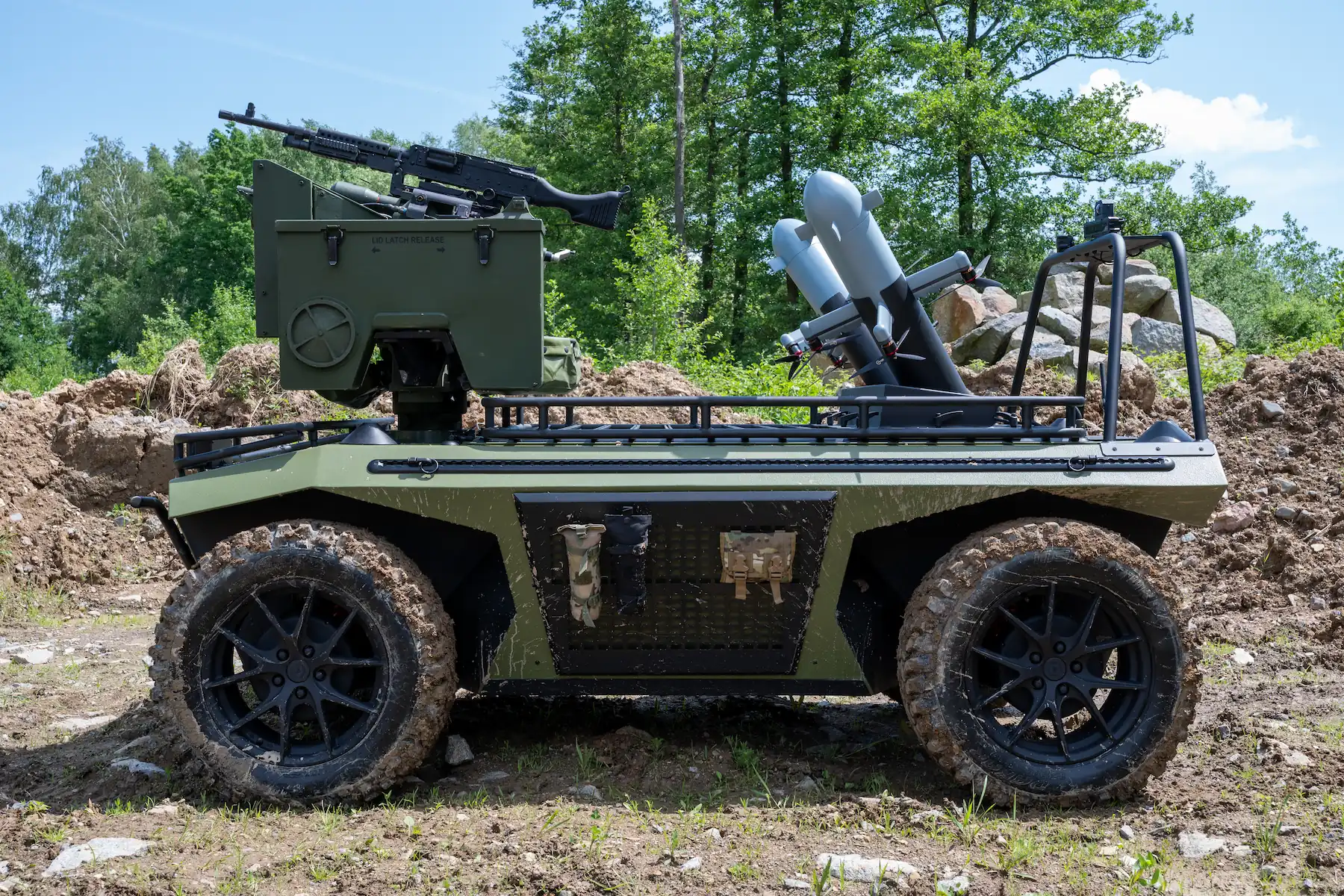

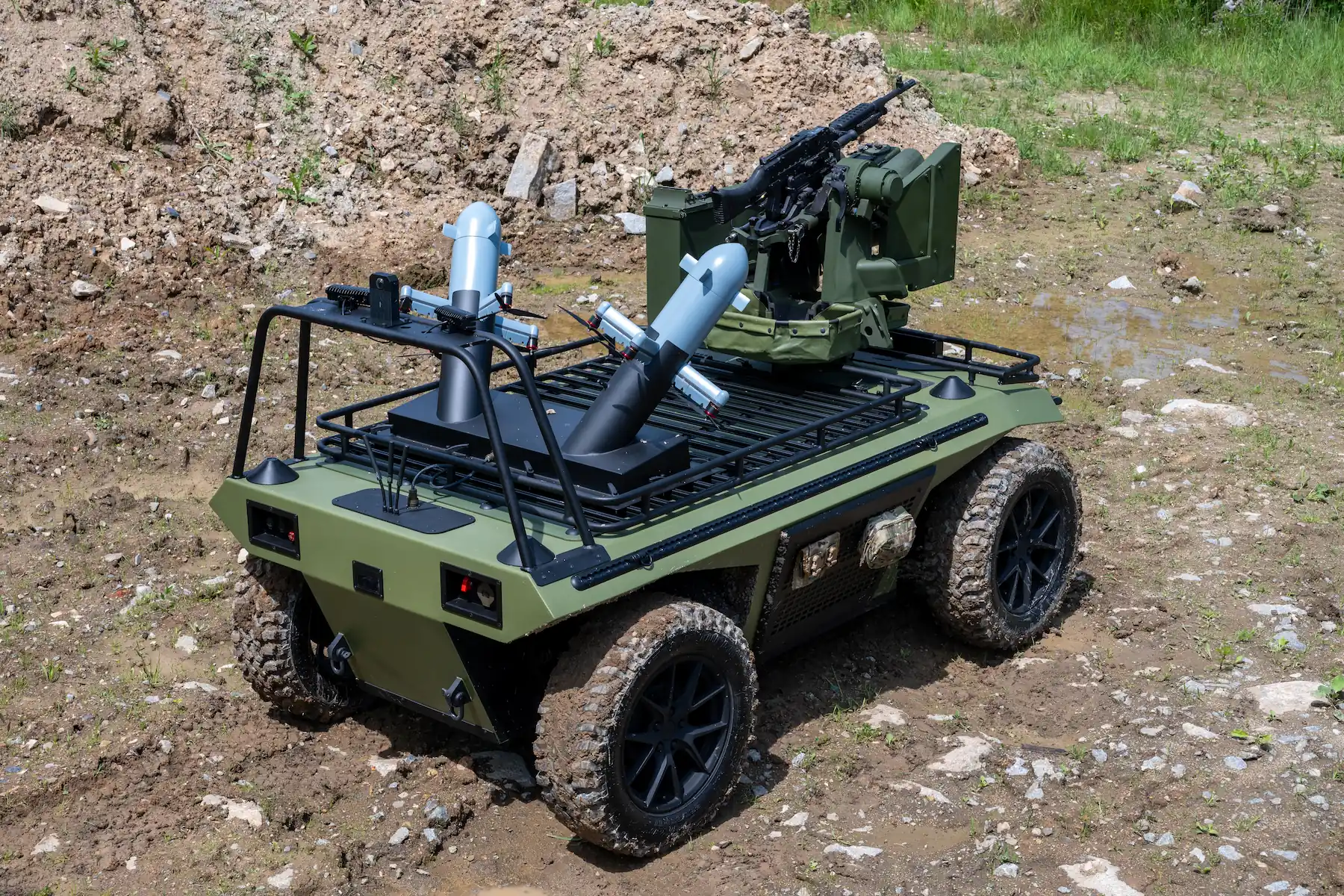

Unmanned Ground Vehicle with anti-drone turret and interceptor drones in terrain
Modular system for reconnaissance and counter-UAV operations

Anti-drone UGV Configuration

  • Modular system based on UGV HORNET designed for reconnaissance and counter-UAV operations.
  • RS4 weapon turret allows remote operator control and engagement.
  • INTERCEPTOR drones expand the range of reconnaissance and response to air threats.
  • R30 Radar with the ability to identify air targets, including unmanned vehicles.
  • Designed for easy integration of new sensors and payloads to meet changing mission requirements.

Basic description

The anti-drone system is based on the fully autonomous LPP HORNET unmanned ground vehicle (UGV). It is capable of monitoring a defined area, searching for threats, and eliminating drones using a weapon station and LPP INTERCEPTOR drones. It enhances situational awareness, reduces risk to personnel, and increases operational efficiency in a wide range of terrains and threats. The system functions as an integrated, modular superstructure that incorporates several key components.

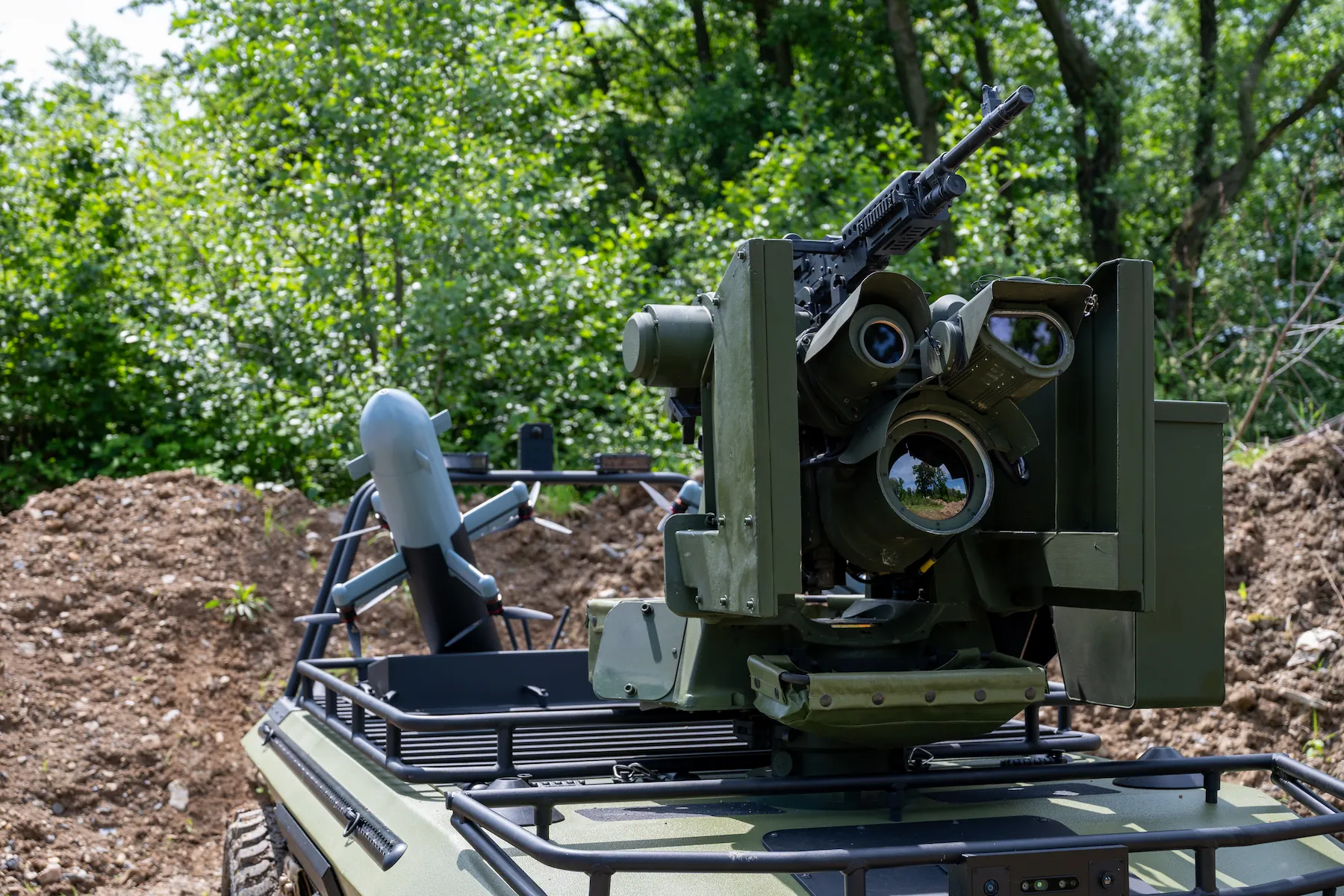

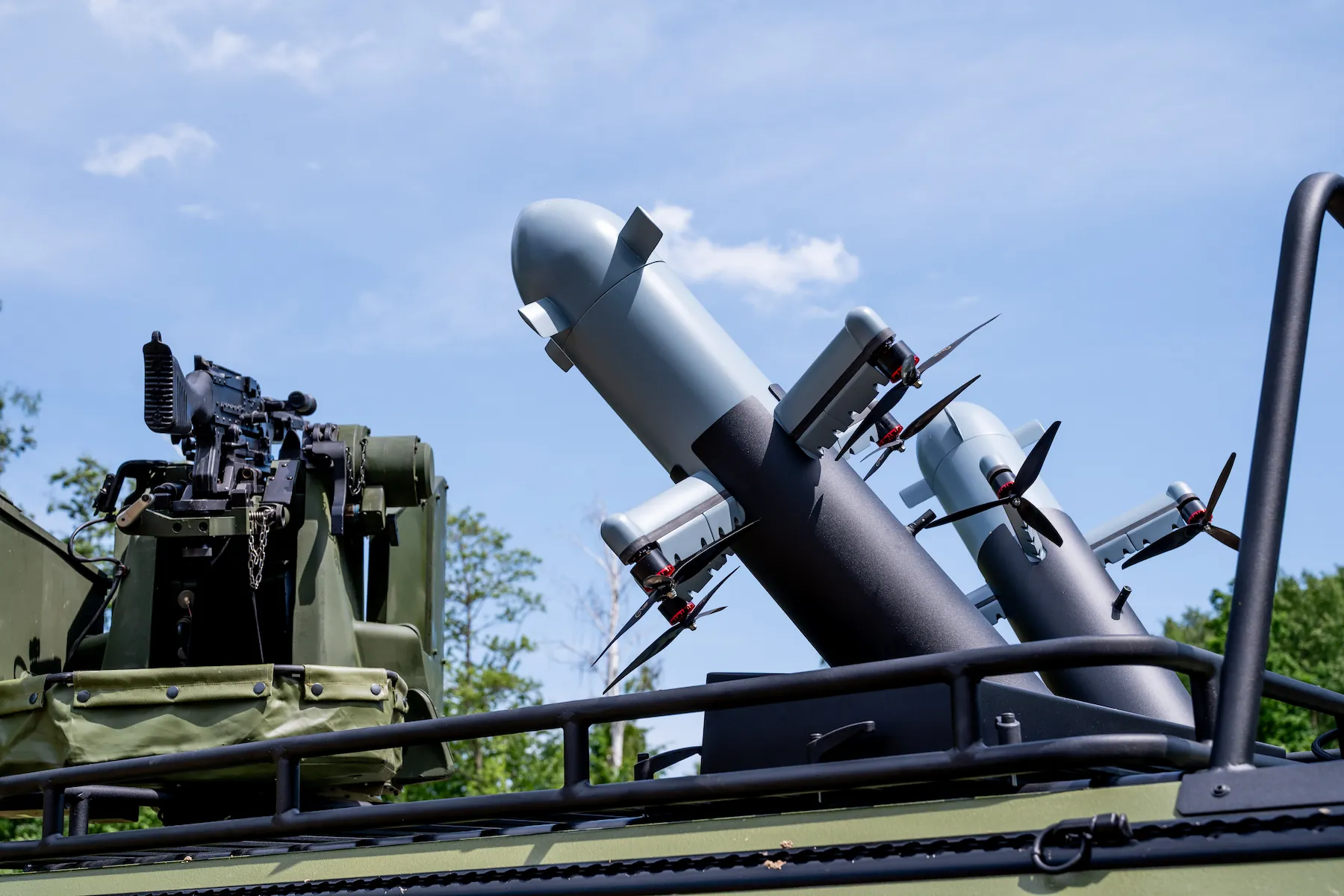

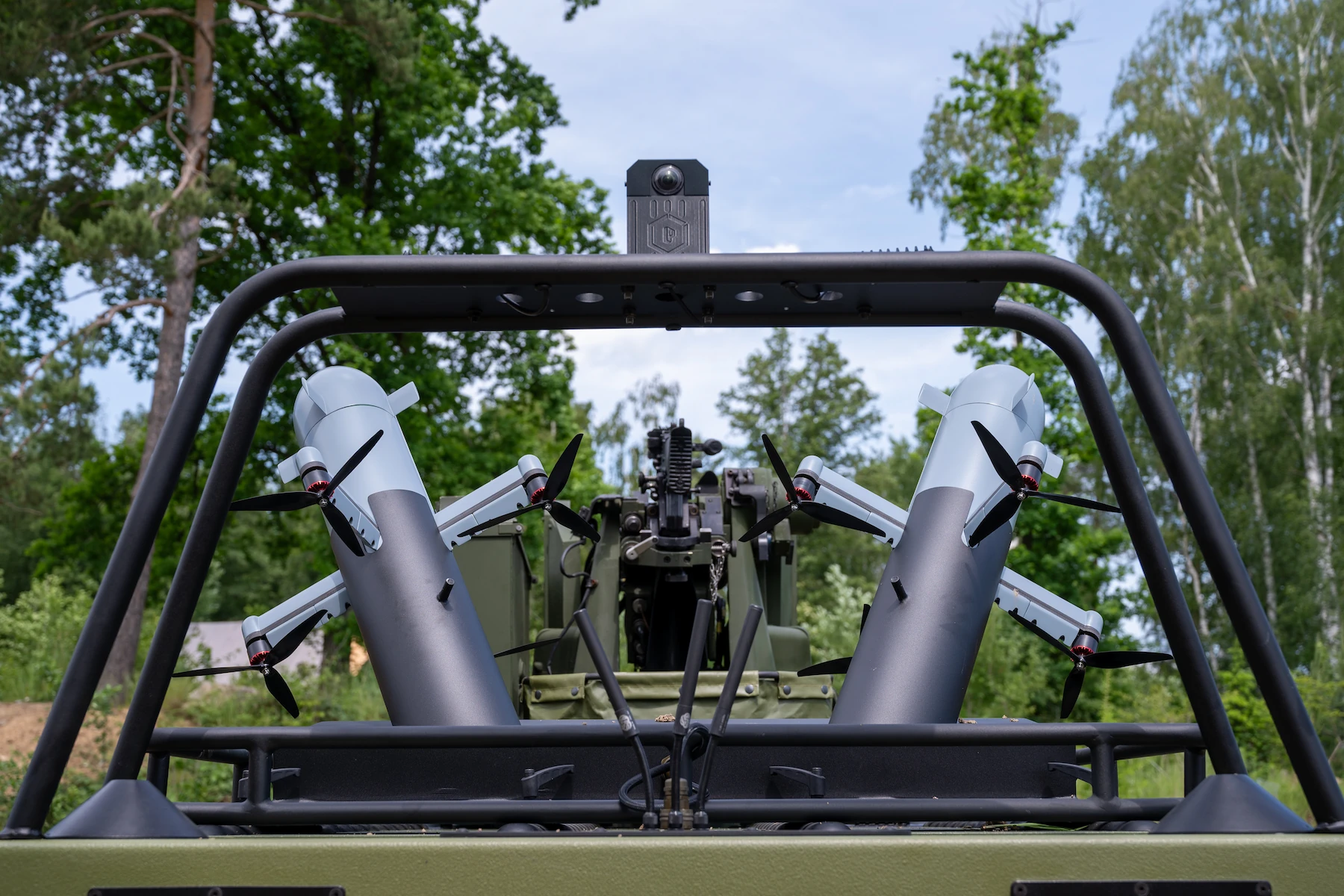

The RS4 turret enables operators to remotely utilise several optoelectronic sensors, such as thermal imaging, for reconnaissance and target detection. It also features a remotely operated weapon system with human-in-the-loop control. The UGV is further equipped with an R30 radar for detecting aerial targets, specifically optimised for anti-drone operations. The system also features LPP INTERCEPTOR drones — quadcopters specifically designed to eliminate enemy drones. Each INTERCEPTOR includes onboard sensors for precise navigation and a custom fragmentation warhead to maximise hit probability.

The UGV is equipped with the LPP Autonomous Navigation System, enabling it to operate independently or in coordination with crewed units. This provides enhanced operational capabilities to deployed forces.

Technical description

Vehicle Type UGV
Type Electro-Hybrid
Payload 350 Kg
Length 2820 mm
Width 1590 mm
Height 970 mm
For more details, contact us at email info@lp-praha.cz.
