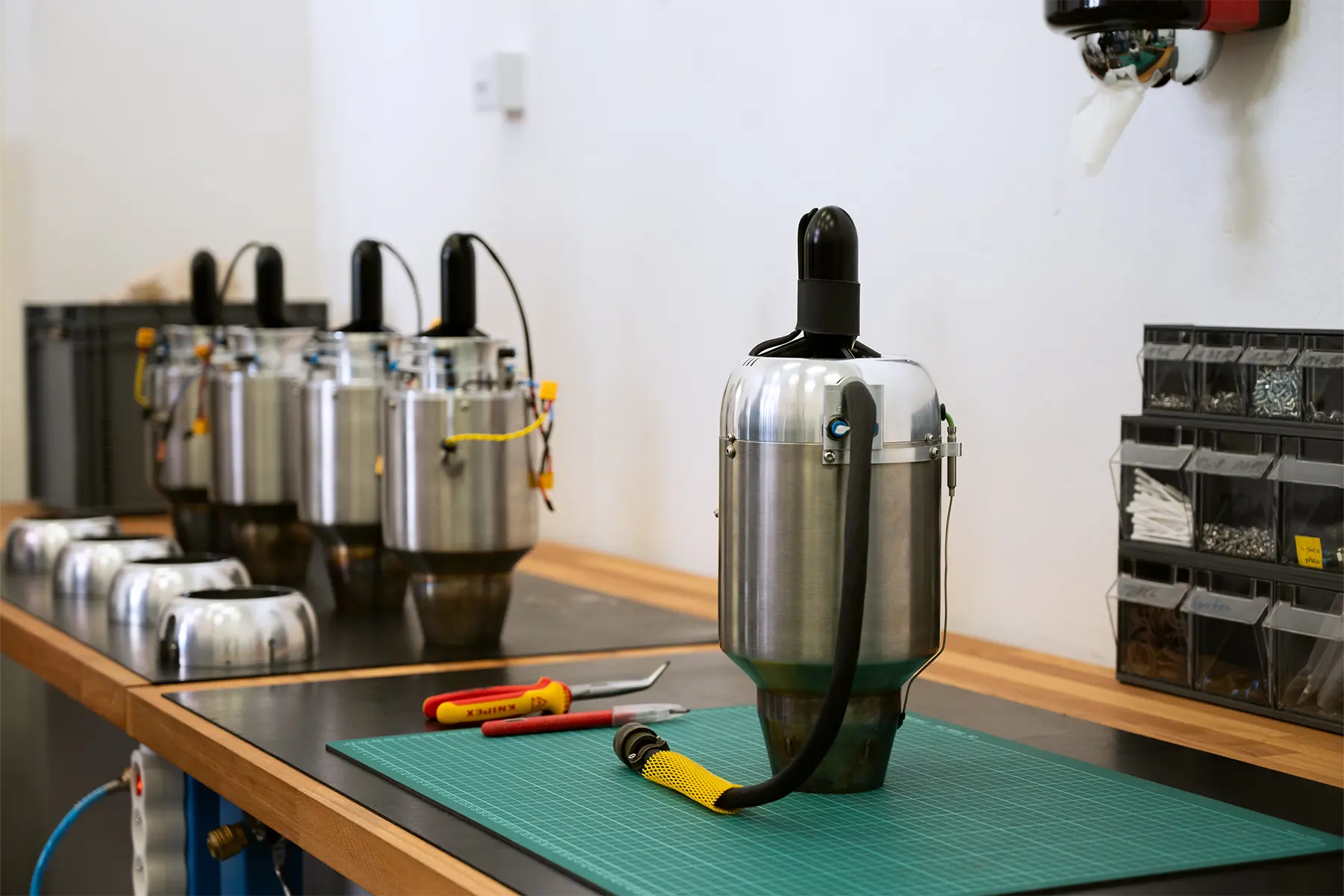

ZT J40 turbojet engine on assembly bench with tools
Airbreathing Jet Engine

Turbojet Engine ZT J40

  • Compact turbojet engine delivering high thrust for UAVs, target drones, and light aerial platforms.
  • High thrust-to-weight ratio with optimised diffuser stage for additional efficiency
  • Spools from idle to maximum RPM in under four seconds for rapid throttle response.
  • Supports manual, air-start, or electric start for flexible integration.
  • Streamlined design fits demanding space-constrained installations without performance trade-offs.

Basic description

The ZT J40 is a compact, high-performance turbojet engine developed for UAVs, target drones, and light aerial platforms. It features a single-stage radial compressor and a single-stage axial flow turbine, delivering a high thrust-to-weight ratio and fast throttle response. Its compact design is ideal for platforms with tight space constraints, without sacrificing power or capability.

The engine supports multiple start modes, including manual, auto air-start, and fully automatic electric start. It accelerates from idle to maximum RPM in under four seconds, enabling fast reaction times and mission flexibility.

Backed by high-volume manufacturing capabilities, our team also provides full engineering support for the development of custom turbojet solutions, enabling adaptation across a wide range of applications.

Technical description

Thrust 392 N
Max. RPM 96000
Max. altitude 8000 m
Max. speed 1000 km/h
Fuel consumption 1020 Gr/min
Engine weight 5211 g
For more details, contact us at email info@lp-praha.cz.
