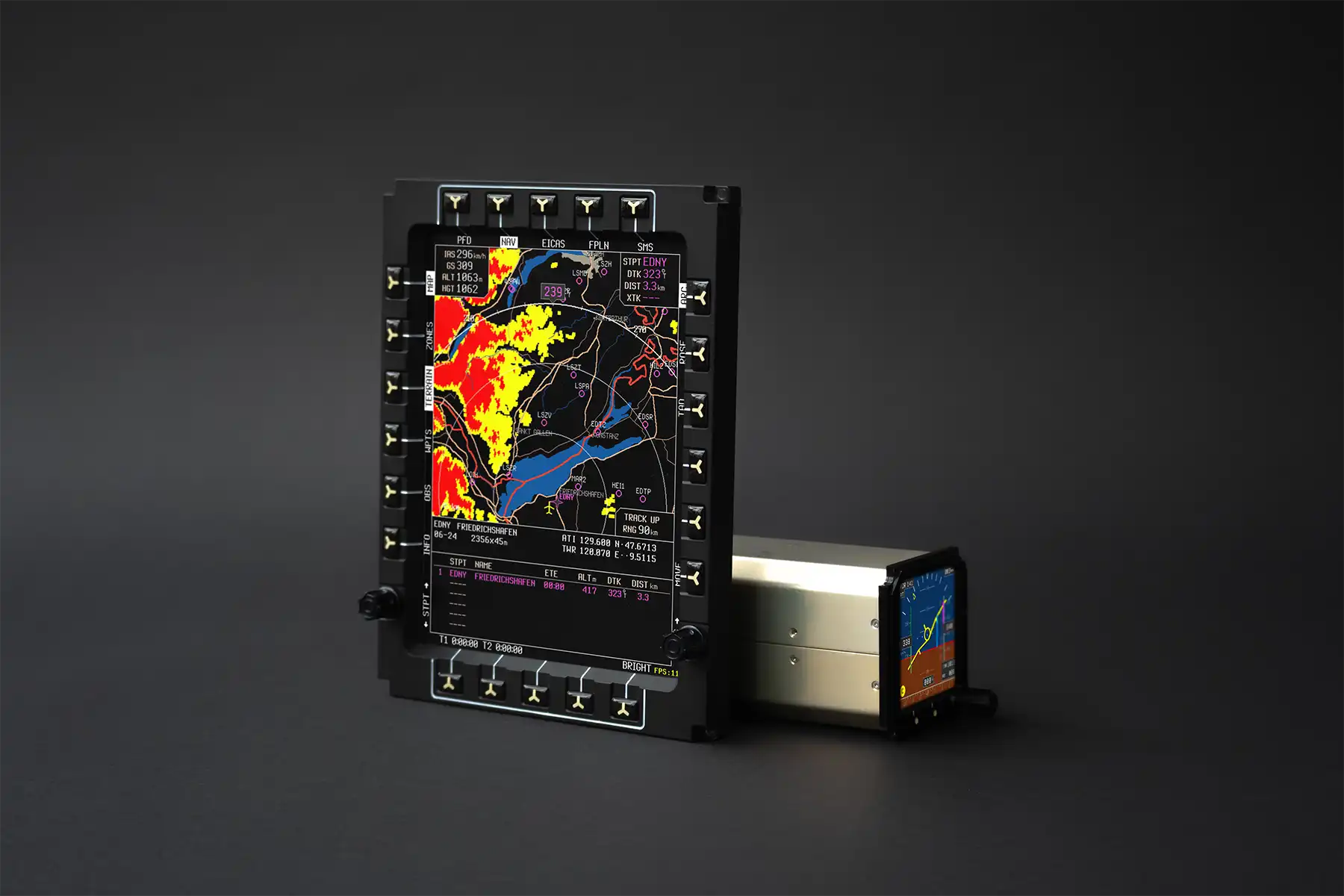

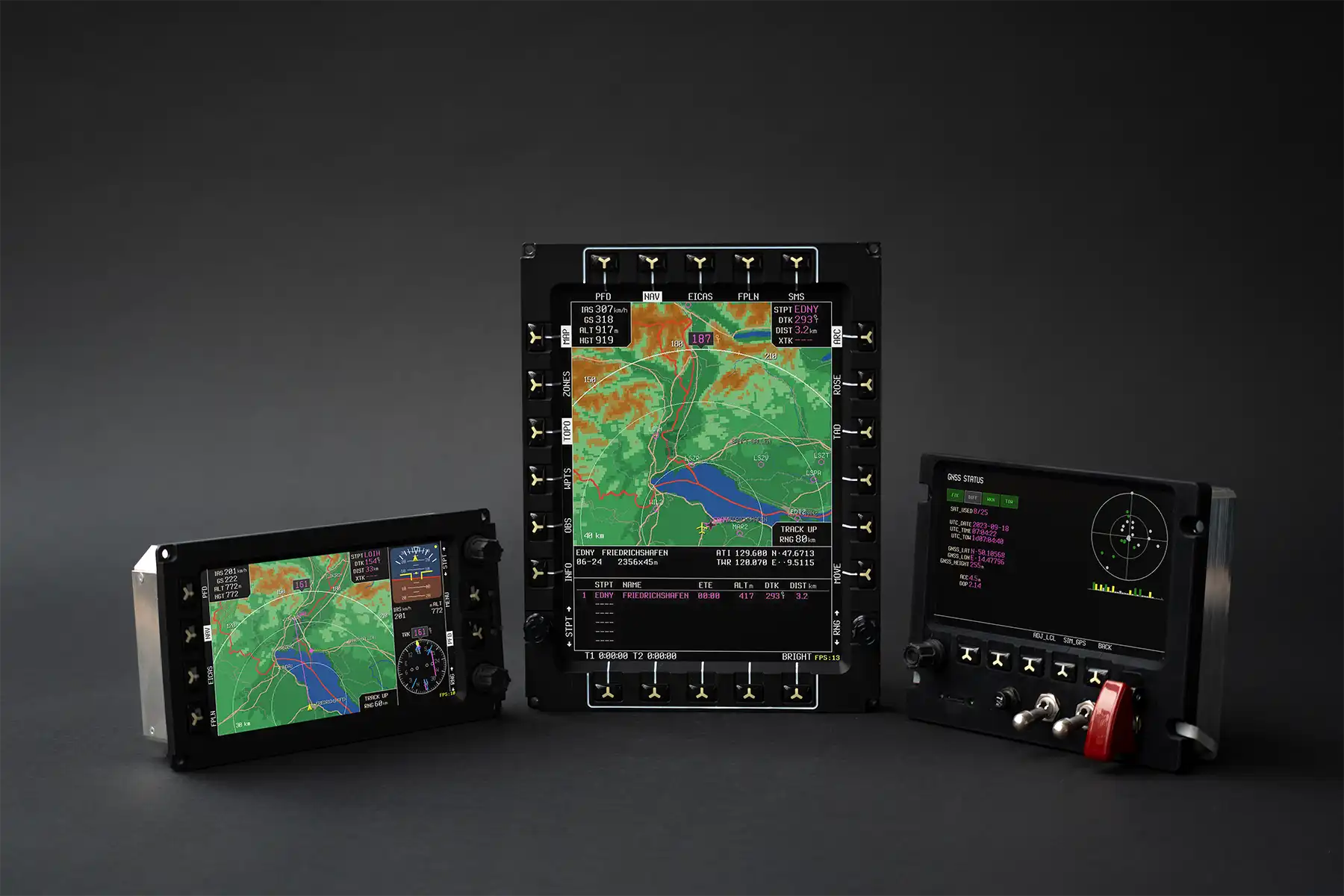

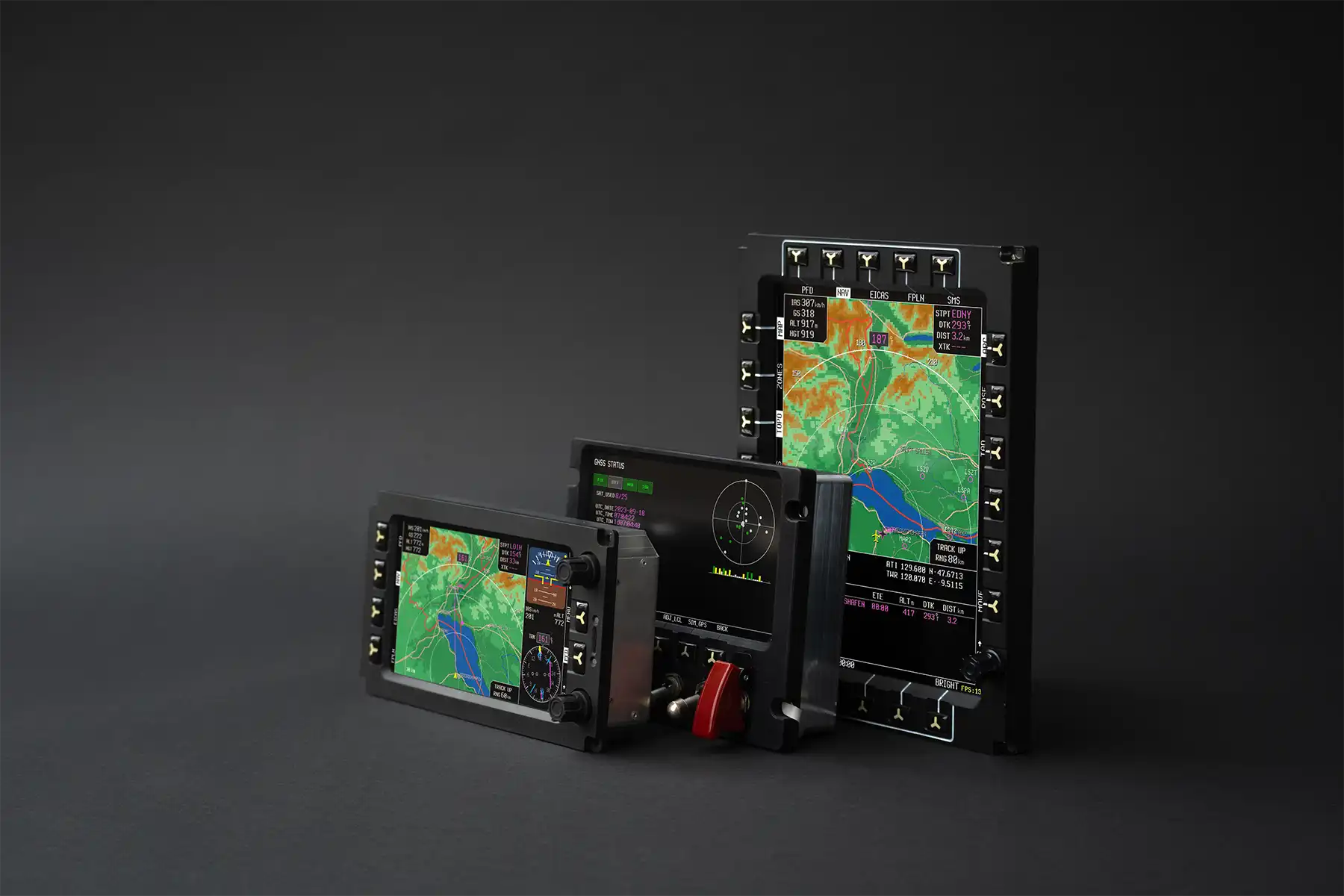

Angle view of multiple electronic flight displays used in aircraft glass cockpit configurations
Electronic flight instrument system

Electronic flight display EFIS

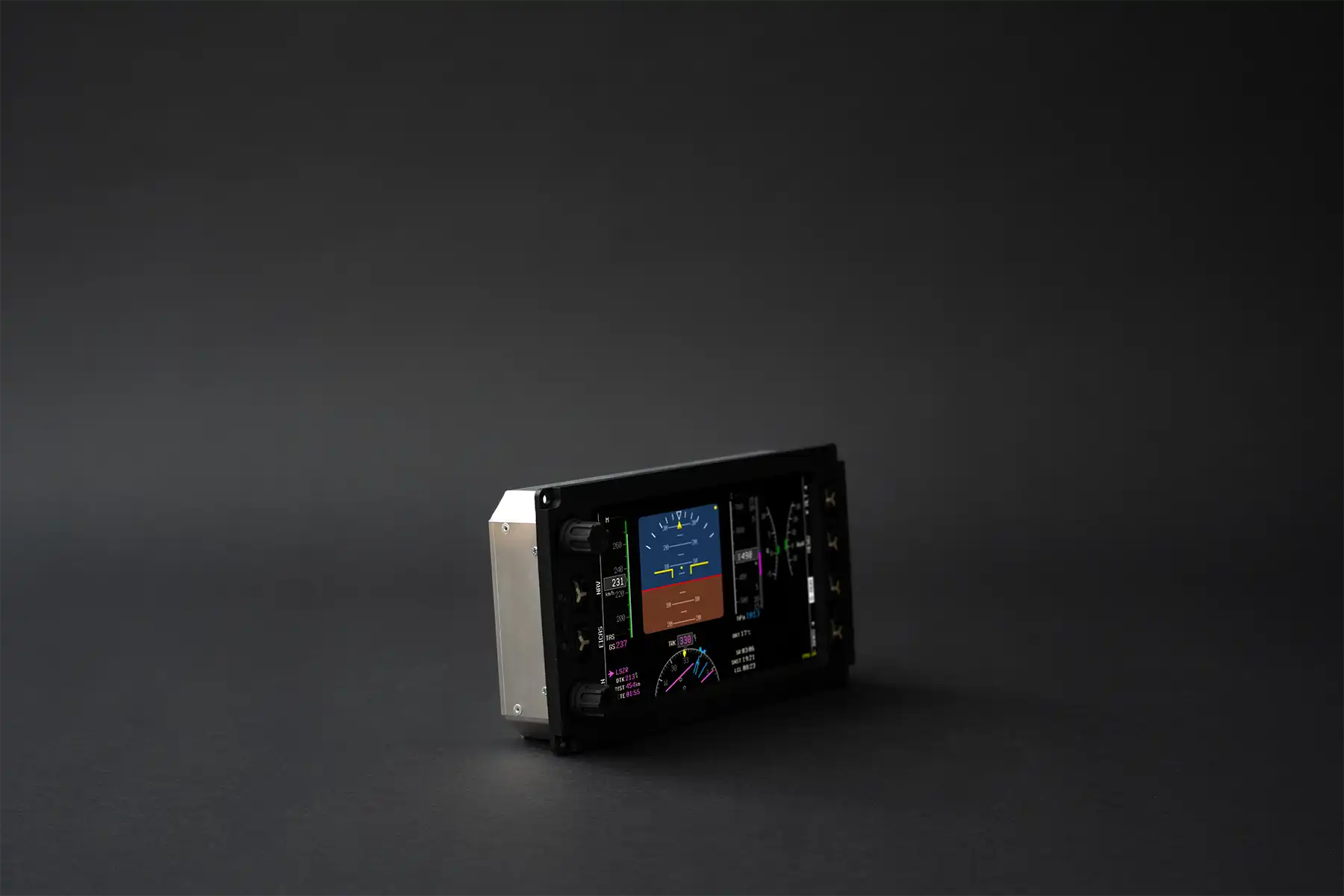

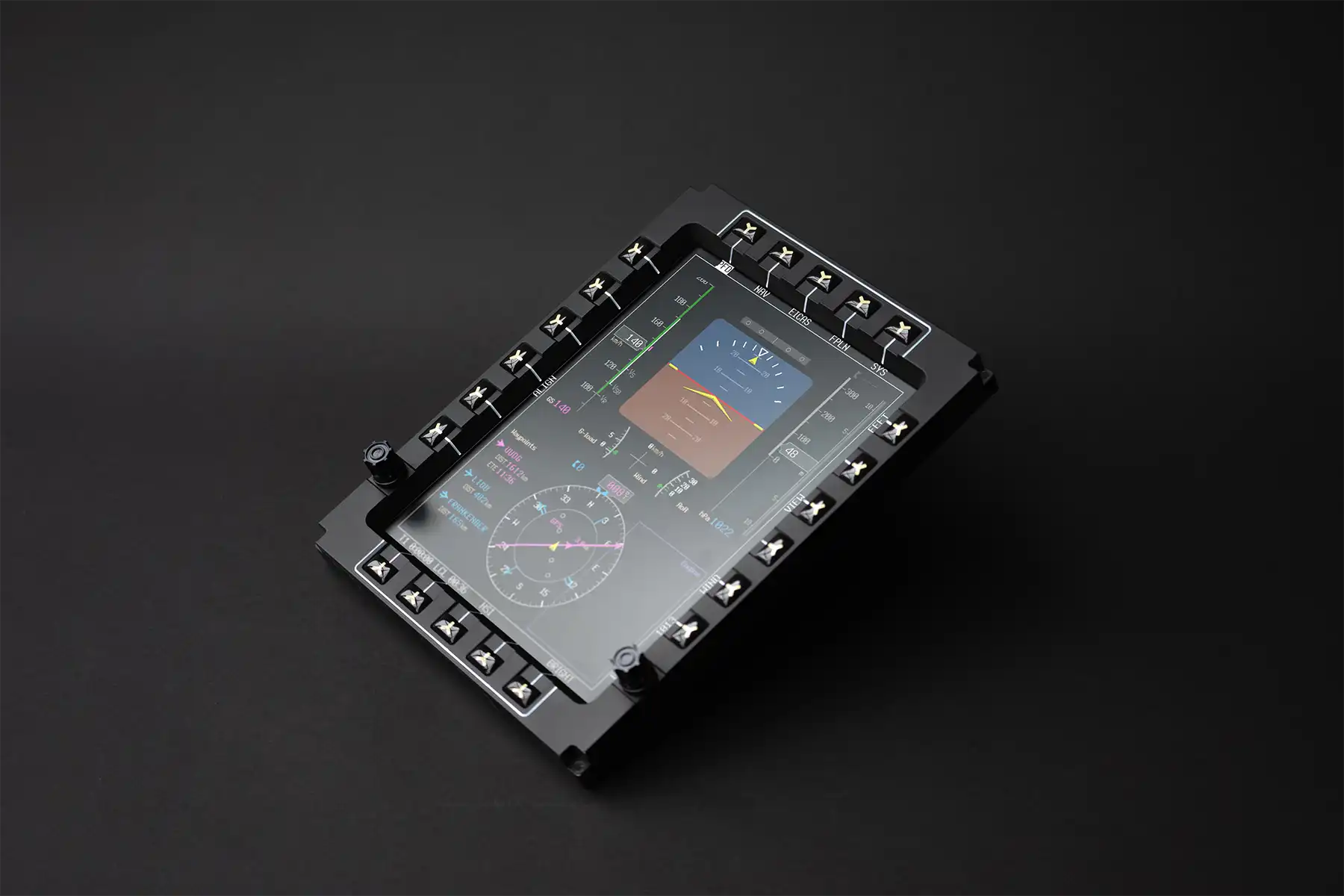

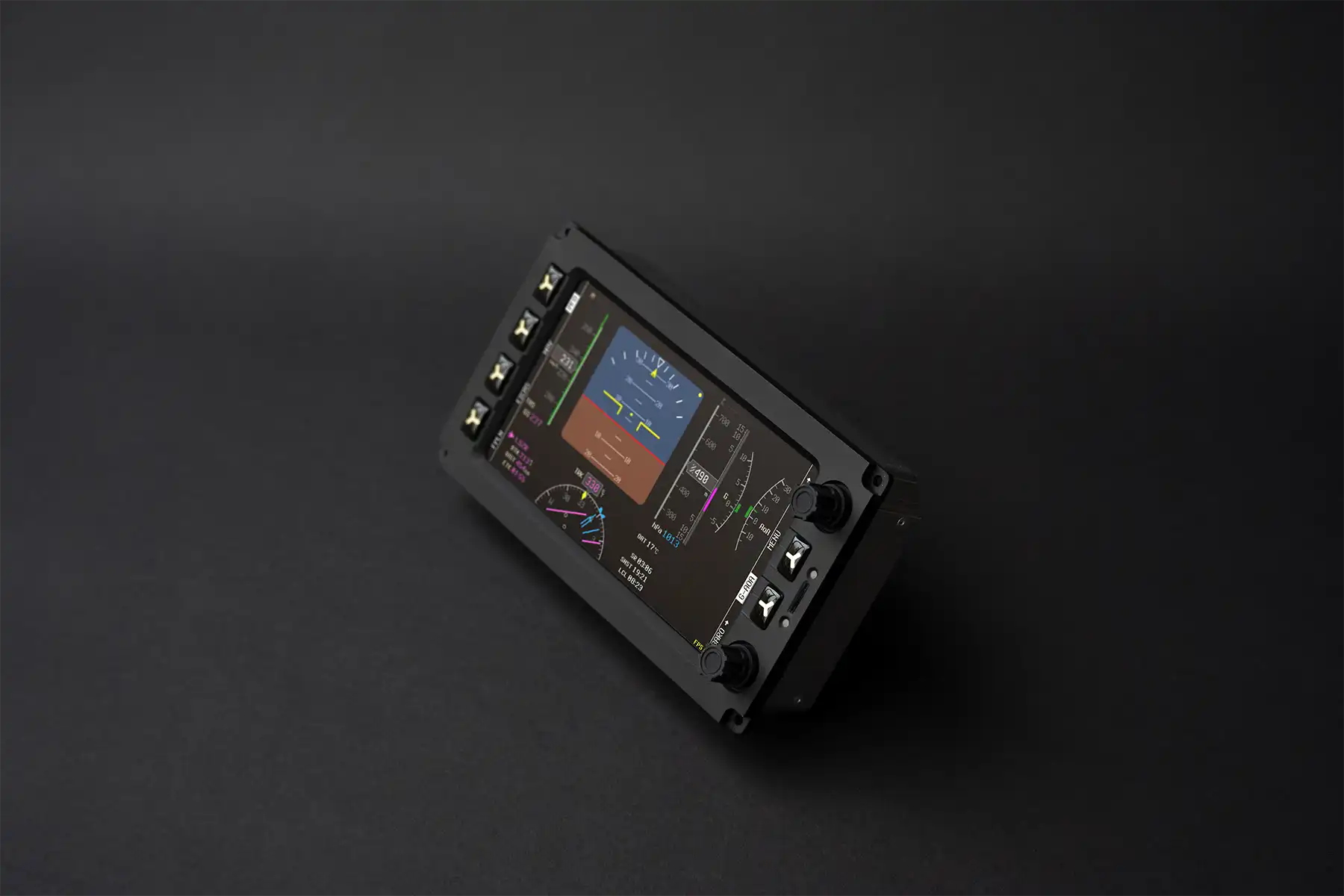

  • Electronic flight instrument system family featuring 7“ (EFIS 207) or 10“ (EFIS 210) MFDs.
  • Integrates with Mission Computer or directly with systems like ADC, AHRS, and GPS.
  • Displays data from FMS, SMS, VTS, and HUMS, configurable for glass cockpit solutions.
  • Supports mission simulation, debriefing, and VR/AR training applications.
  • Compliant with ARINC 429, RS232, RS422, MIL-STD-704F, MIL-STD-810E, and DO-160G.

Basic description

EFIS is an advanced electronic flight instrument system suitable for all aircraft types, featuring 7-inch (EFIS 207) or 10-inch (EFIS 210) multi-function displays. It processes ARINC 429 inputs to calculate and render data on screen.

The system integrates seamlessly with the Mission Computer and additional systems such as Air Data Computer (ADC), Attitude and Heading Reference System (AHRS), GPS, and more.

Functional pages display information from the Flight Management System (FMS), Stores Management System (SMS), Virtual Training System (VTS), or Health and Usage Monitoring System (HUMS). Configurations are available for standalone use or integration into glass cockpits.

Designed for versatility, the EFIS supports mission simulation and debriefing. It also offers the capability of integrating VR/AR applications for training. Its sunlight-readable LCD with LED backlighting and NVIS compatibility ensures optimal performance in various lighting conditions.

LPP also produces the WX-80 Control Panel for the Stores Management System or Cloud Seeding Launch System.

Technical description

Display Mode Western-style (Imperial), Eastern-style (Metric, Cyrillic)
Screen Size 7 or 10 inches
Power Supply 9-35 VDC
Input Current Less than 1.2A
Temperature Range -30°C to +85°C
Protection IP54
