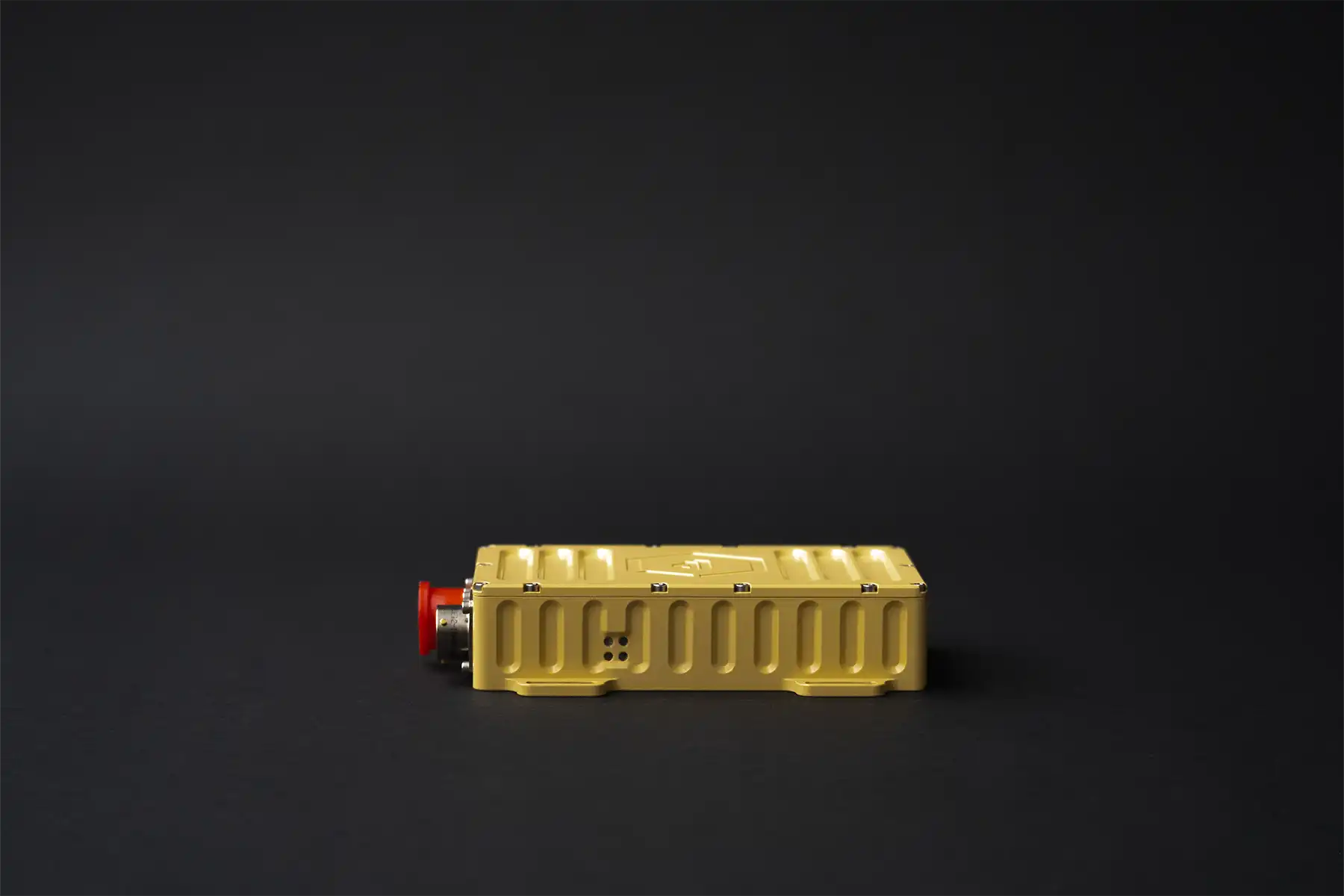

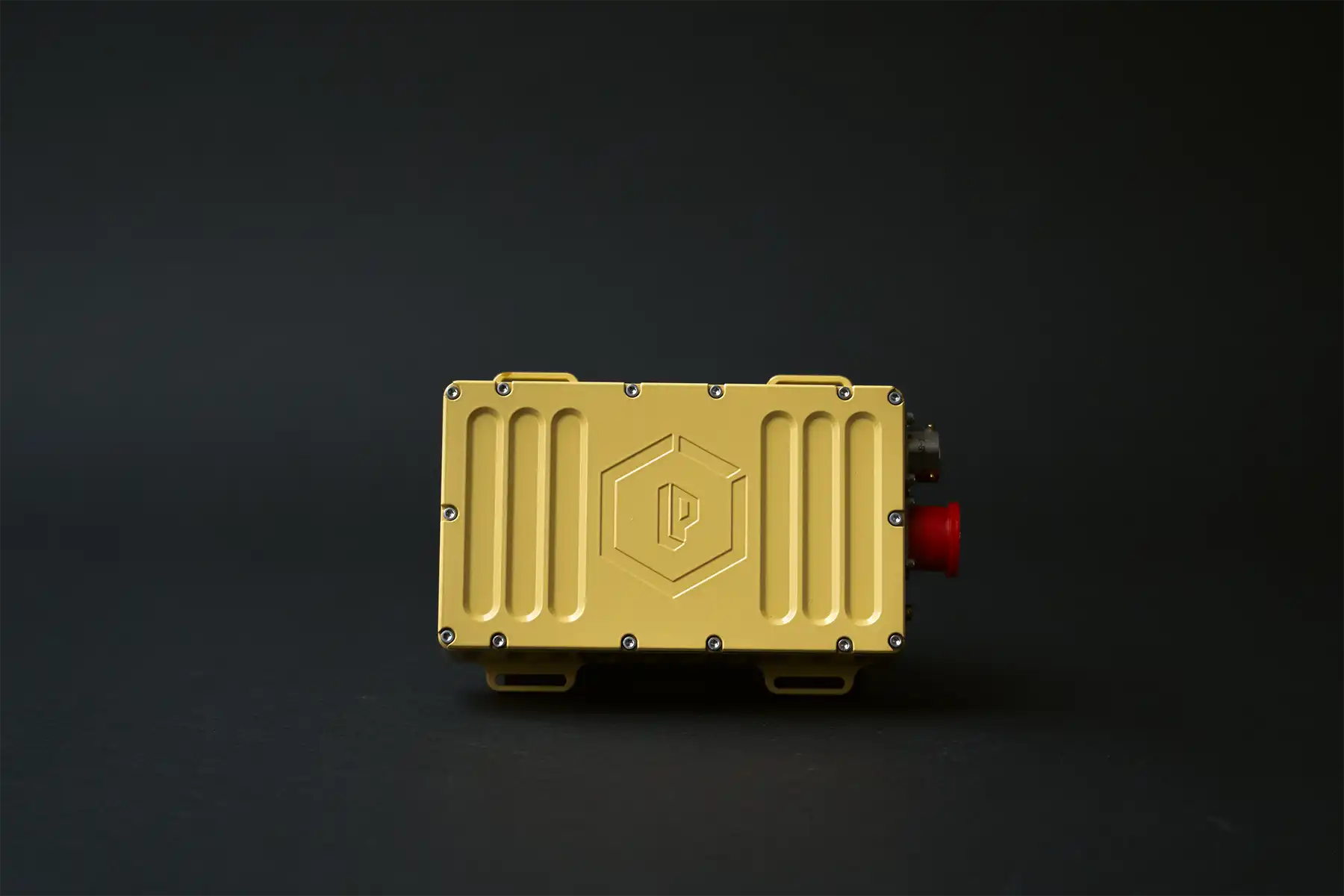

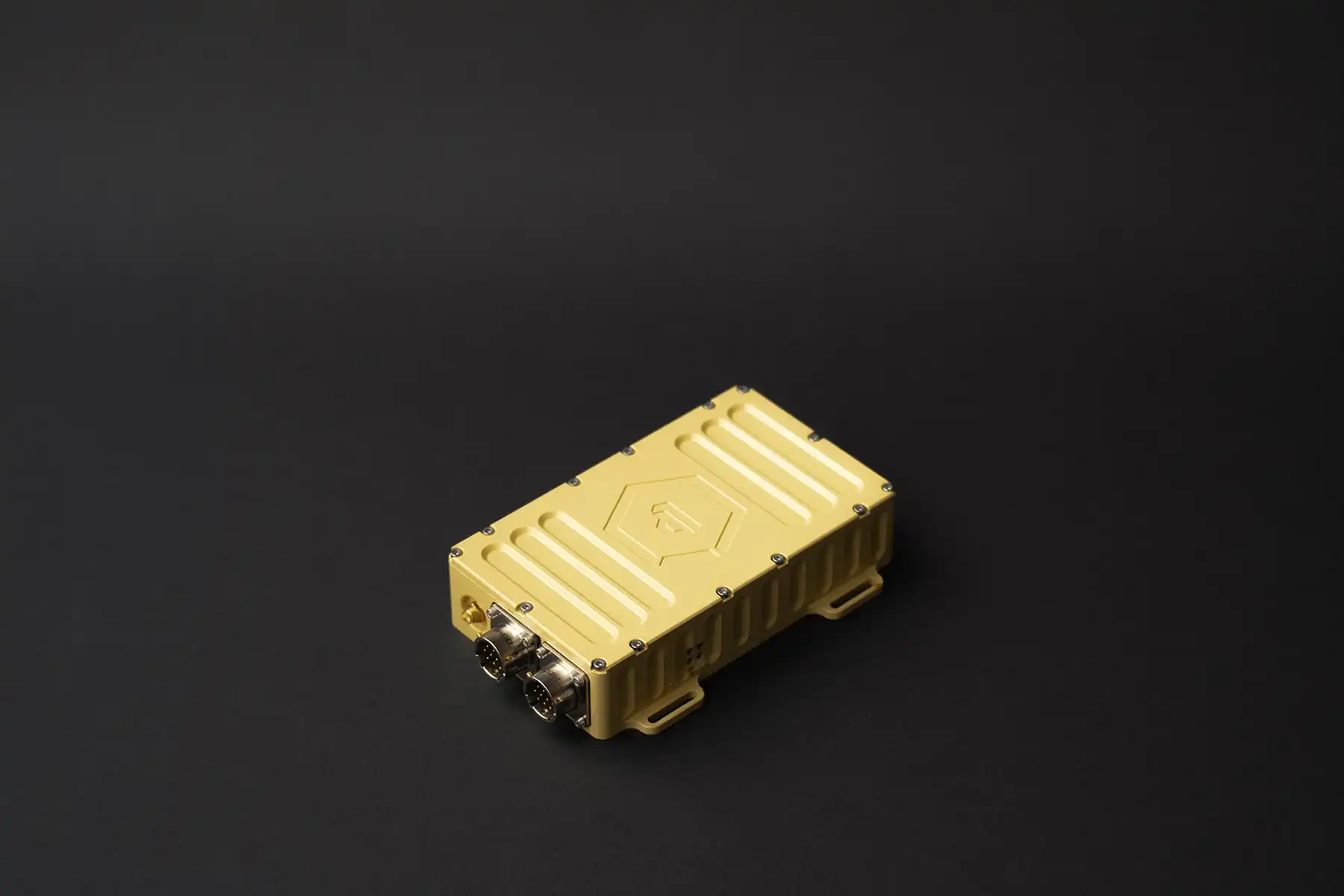

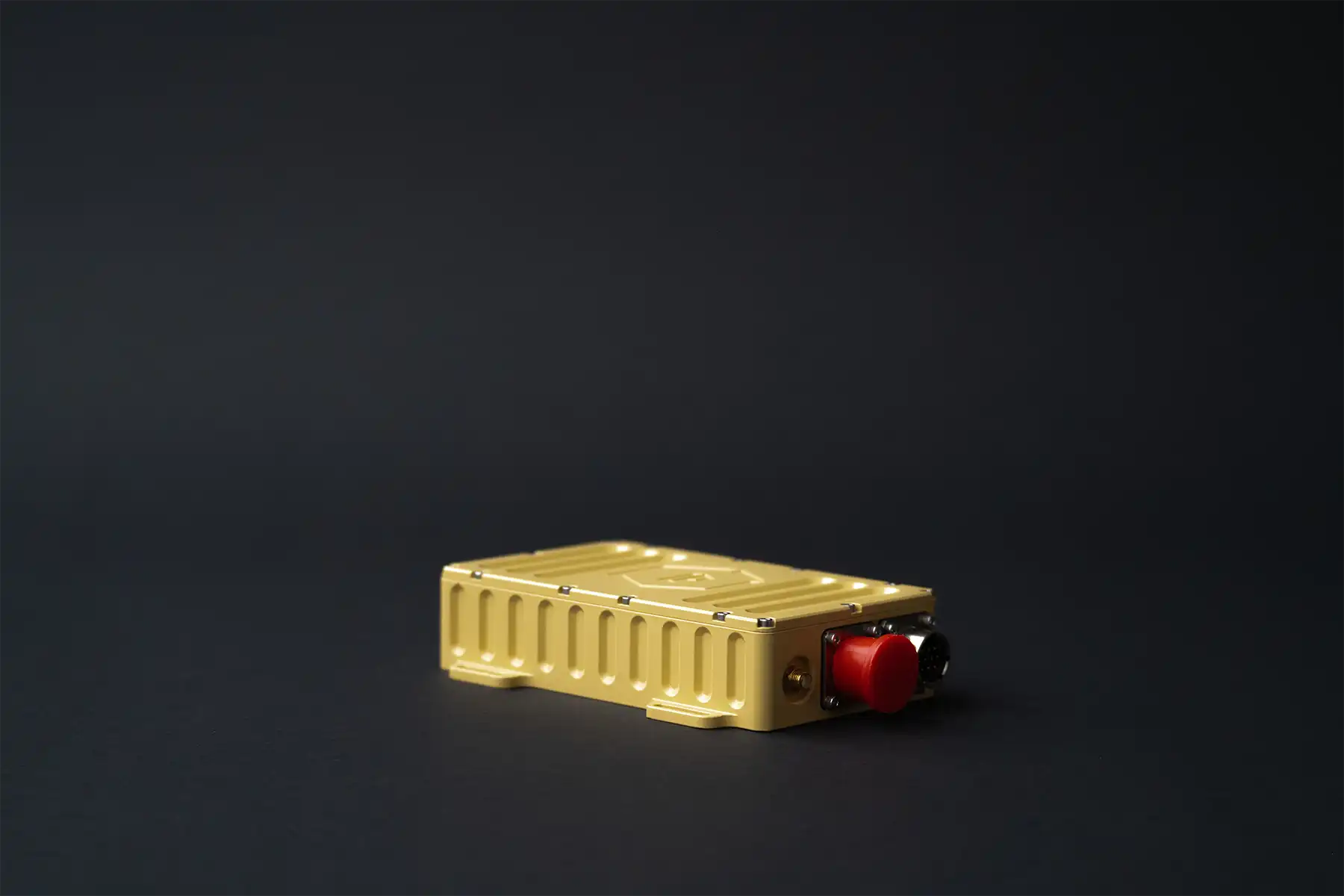

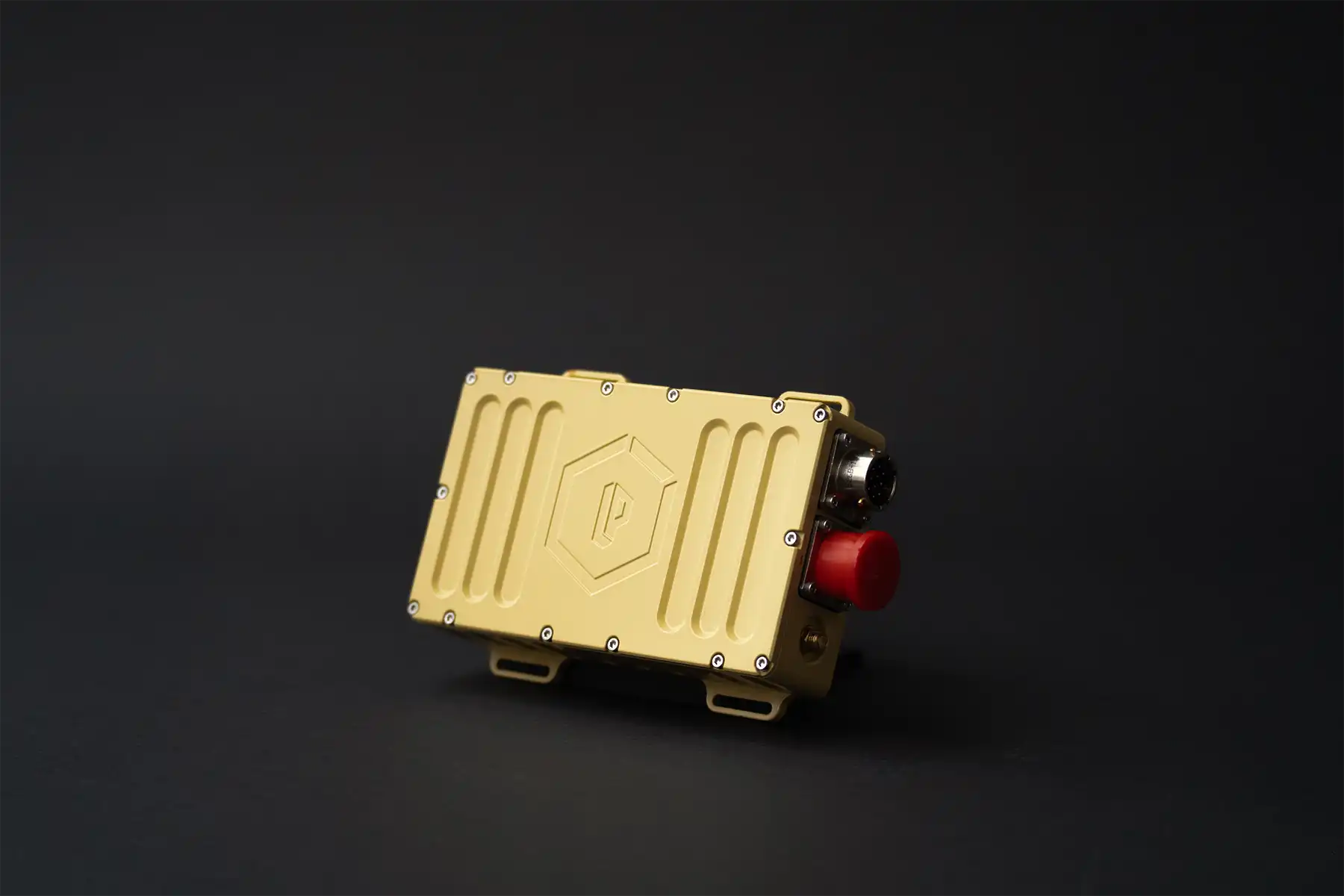

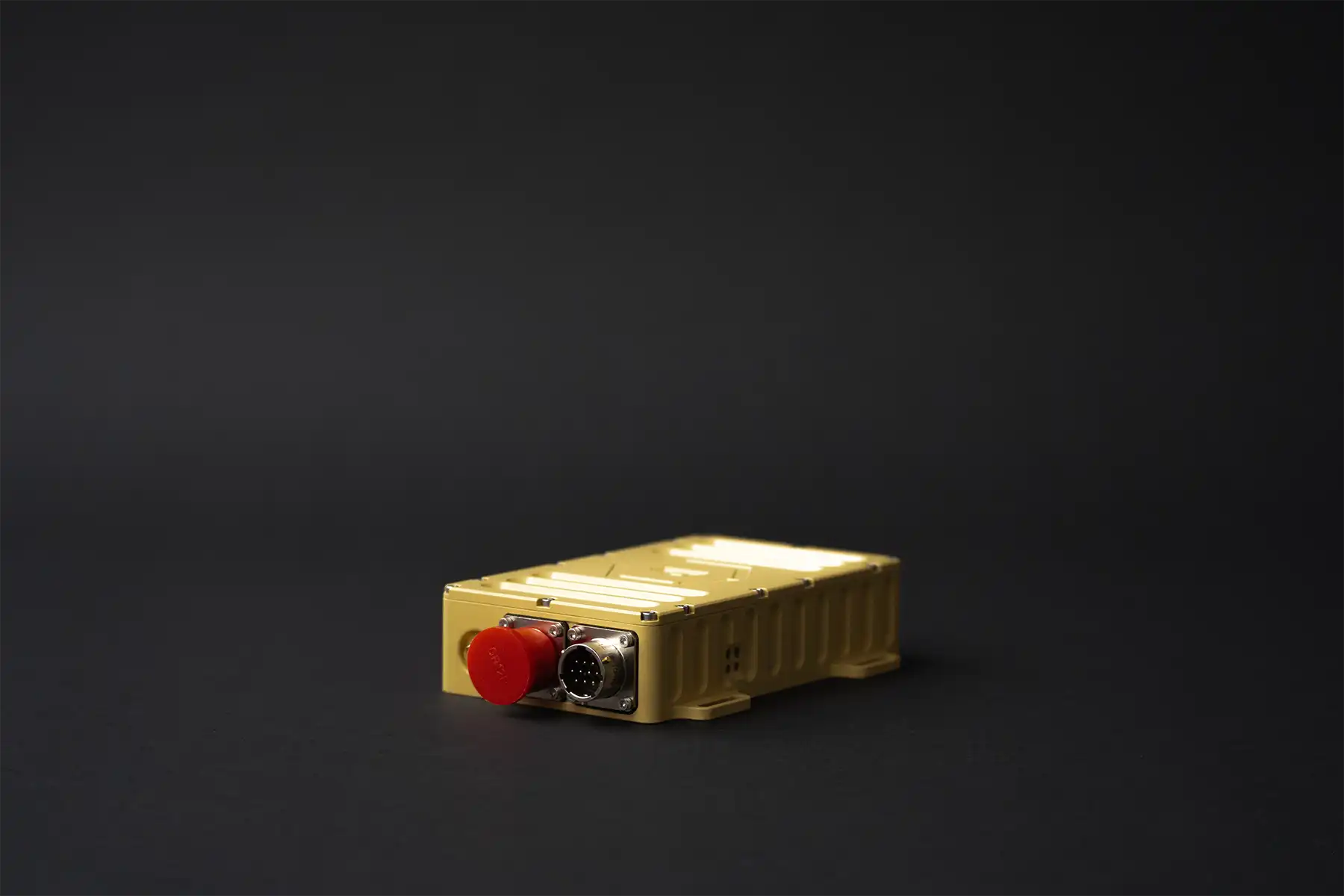

Yellow inertial navigation unit featuring rugged design
Inertial Navigation System for GNSS-denied environment

Inertial Navigation Unit

  • Enables accurate navigation without relying on GNSS by utilising dead reckoning.
  • Onboard Inertial Measurement Unit features MEMS gyroscopes, accelerometers, and magnetometers.
  • Advanced algorithms integrate data from sensors, including GNSS receivers and external odometry.
  • Features diagnostics and a Driver’s Display Unit (DDU) for improved usability.
  • Qualified to MIL-STD 810 G/H standards, it is ideal for armoured vehicle and UGV navigation systems.

Basic description

Using advanced dead reckoning technology, the Inertial Navigation Unit ensures precise navigation without relying on GNSS. Equipped with an Inertial Measurement Unit (IMU) that includes gyroscopes, accelerometers, and magnetometers, the unit provides accurate data on position, heading, and distance travelled. All core sensing components are powered by MEMS technology.

Advanced algorithms integrate data from multiple sensors, including a GNSS receiver and external odometry, to enhance accuracy. The system also features diagnostics and a Driver’s Display Unit (DDU) for improved usability. Qualified to MIL-STD 810 G/H standards, the unit supports autonomous navigation systems in unmanned ground vehicles (UGVs) and armoured vehicle platforms, ensuring reliable performance in harsh environments.

LPP also produces similar systems, including AHRS for aircraft and IMUs for UAVs, to address a range of navigation needs in demanding environments.

Technical description

Position Accuracy (Free Inertial, Land Vehicles) 2% of distance travel without GNSS
Pitch/Roll (Dynamic) 0.5° RMS
Pitch/Roll (Static) 0.1° RMS
Heading (Dynamic, GNSS) 1.5° RMS
Heading (Static) 2° RMS
Angular Resolution =0.1° RMS
Output Rate (IMU Data) Up to 10 Hz
For more details, contact us at email info@lp-praha.cz.
